Complete railings

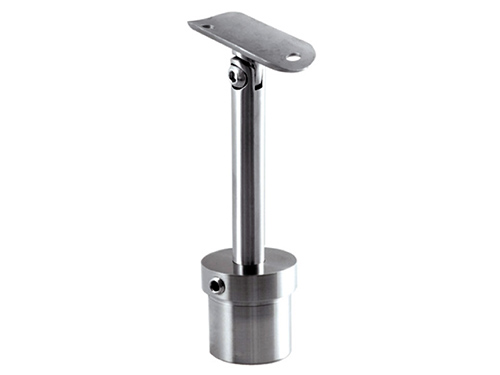

Top fitting with joint and adjustable height (satin)

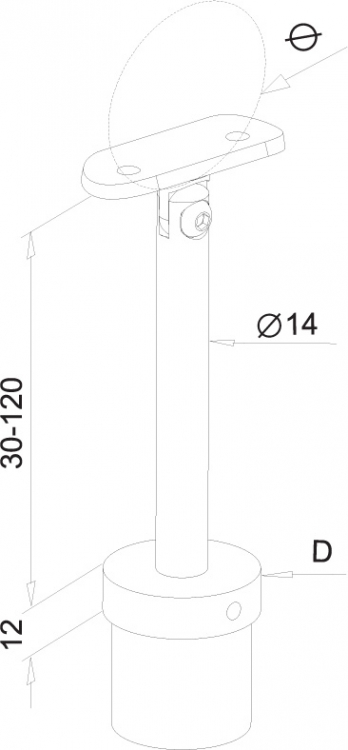

Top fitting with adjustable height and angle for installation of round tubular or wooden hand rail on round post. Made of stainless steel, AISI 316 / A4.
To adjust the height, loosen the socket head cap screw at the bottom of the fitting and pull out the pin to the correct height.
Attach to the post with adhesive T70, which can be found under See more products further down the page. Use 2 screws 9460-4-5X16 for tubular hand rails, or 2 screws 9477-4-4.8X25 for wood.
| Diameter: | 14 mm , 42.4 mm |
| Fits handrail: | Round tube Ø 42,4 , Round wood Ø 42,4 |
| Fits post/surface: | Round Ø 42,4 |
| Material: | Acid-res. st. steel (A4/AISI 316) |
| Surface finish: | Satin/brushed |
| Fastening: | Glue , Screw |
| abcd | Article no. | Price | Stock status | Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Top fitting with joint and adjustable height (satin) | J071242 | Satin | Round 42.4 | €30.18 |
Click on a product to show details. All measurements in millimetres unless otherwise stated.
Top fitting with adjustable height and angle for installation of round tubular or wooden hand rail on round post. Made of stainless steel, AISI 316 / A4.
J071242
