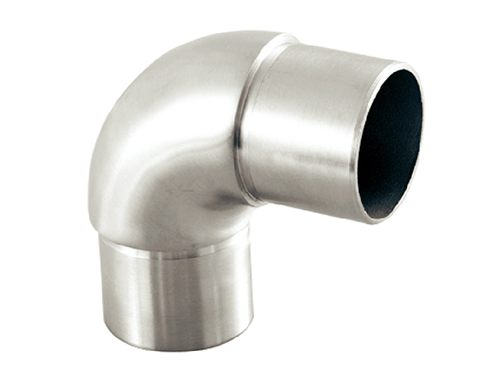

Tube bracket 90°, bent, round tube
Tube bracket with soft bend, made of stainless steel (AISI 316). For tubular hand rails and other tube connections.
For installation of tube connections, use adhesive T70, can be found under See more products further down the page.
| Diameter: | 42.4 mm |
| Thickness: | 2 mm |

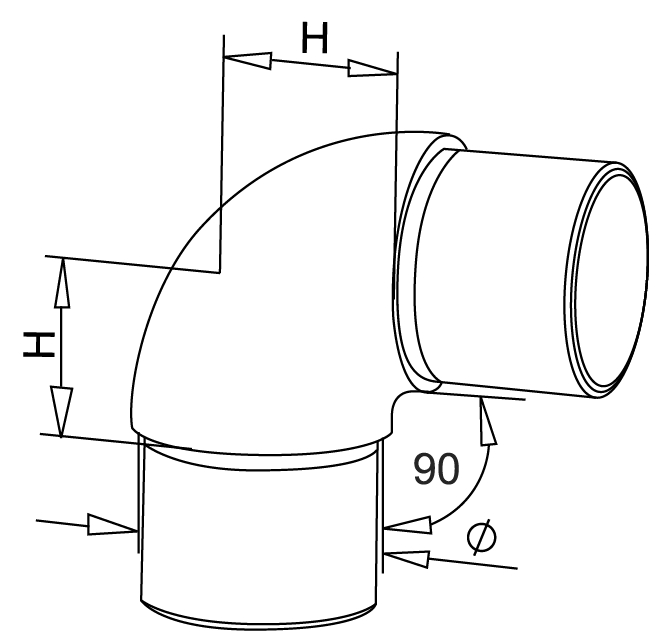

| Visible part (H dim.): | 30 mm |
| Fits handrail: | Round tube Ø 42,4 |
| Fits post/surface: | Round Ø 42,4 |
| Material: | Acid-res. st. steel (A4/AISI 316) |
| Surface finish: | Mirror polish , Satin/brushed |
| Fastening: | Glue |
| abcd | Article no. | Finish | Price | Stock status | Quantity | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Tube bracket 90°, bent, round tube (satin) | J020142 | Satin | €18.36 | |||||||||
| Tube bracket 90°, bent, round tube (mirror) | J020142M | Mirror | €20.45 |
Click on a product to show details. All measurements in millimetres unless otherwise stated.
