Top fittings with bracket, 90°
Top fittings with bracket, 90°

Top fittings with bracket, 90°

416D03
Marifix Railing System

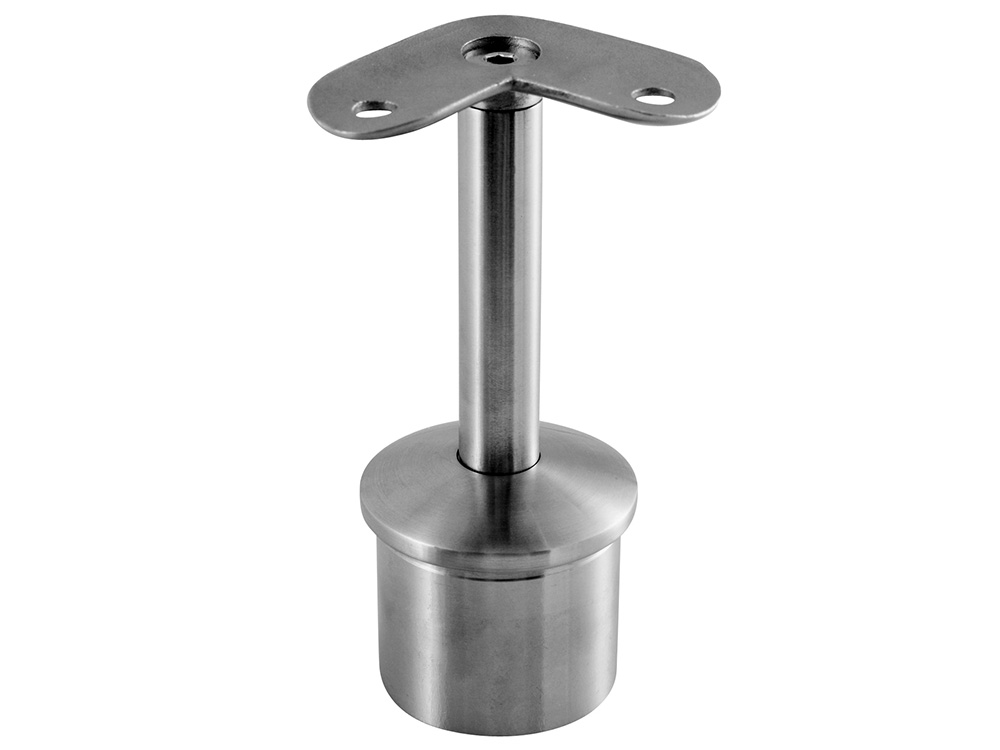

Top fitting with 90° bracket for installation of tubular or wooden hand rail on round post. Made of stainless steel, AISI 316 / A4.

Attach to the post using adhesive T70, can be found under See more products further down the page. Use 2 screws 9460-4-5X16 for tubular hand rails, or 2 screws 9477-4-4.8X25 for wood.

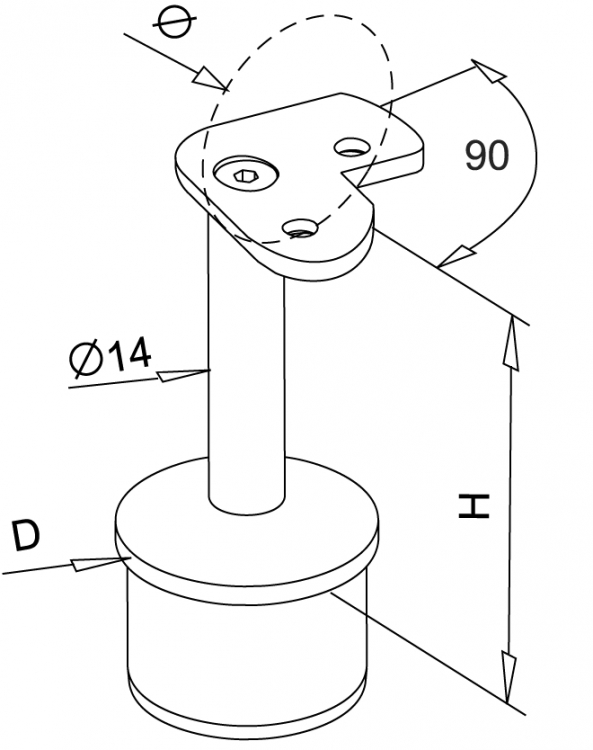

Diameter: 14 mm , 42.4 mm
D dimension: 2 mm
Visible part (H dim.): 81 mm
Fits handrail: Round tube Ø 42,4 , Round wood Ø 42,4 , Square 40 x 40 , Square 60 x 40 , U-tube Ø 42,4
Fits post/surface: Round Ø 42,4
Material: Acid-res. st. steel (A4/AISI 316)
Surface finish: Mirror polish , Satin/brushed
Fastening: Glue , Screw


Qty:
abcd Article no. Handrail Finish Price Stock status Quantity
Top fittings with bracket, 90° (flat, mirror) J072600M Plane Mirror €38.64
Purchase View
Top fittings with bracket, 90° (flat, satin) J072600 Plane Satin €36.91
Purchase View
Top fittings with bracket, 90° (round, mirror) J072642M Round 42.4 Mirror €27.55
Purchase View
Top fittings with bracket, 90° (round, satin) J072642 Round 42.4 Satin €17.73
Purchase View

Click on a product to show details. All measurements in millimetres unless otherwise stated.
