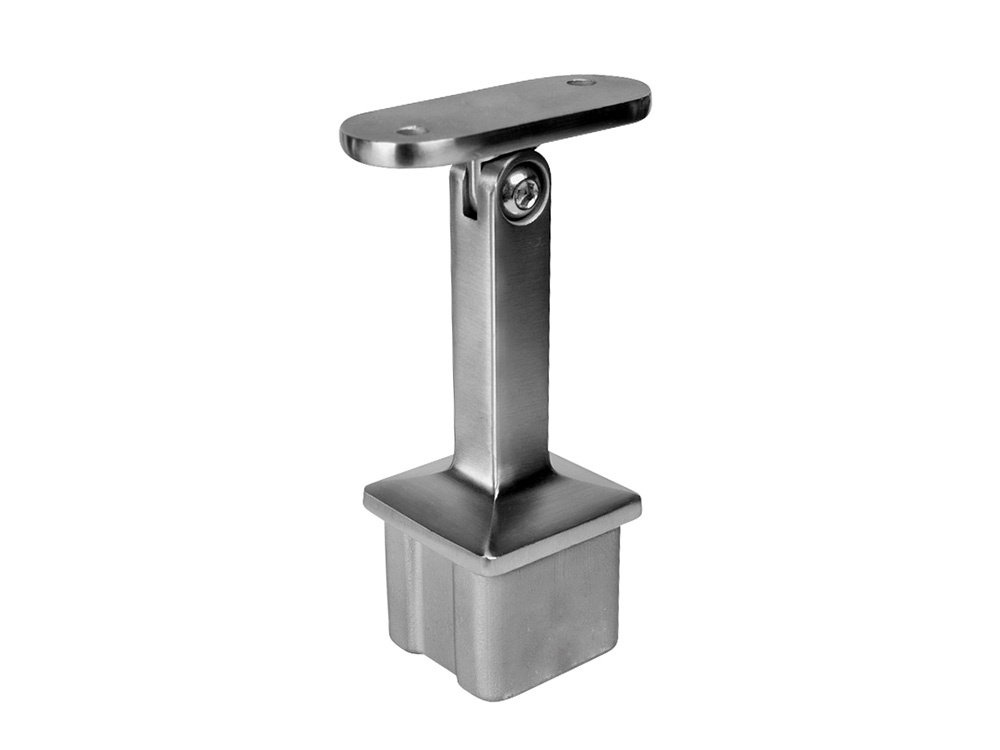

Top fitting with joint, square post
Top fitting with joint, square post

Top fitting with joint, square post

416D21
Marifix Railing System

Adjustable top fitting for installation of tubular or wooden hand rail on 40 x 40 mm post. Made of stainless steel, AISI 316 / A4.

Attach to the post using adhesive T70, can be found under See more products further down the page. Use 2 screws 9460-4-5X16 for tubular hand rails, or 2 screws 9477-4-4.8X25 for wood.

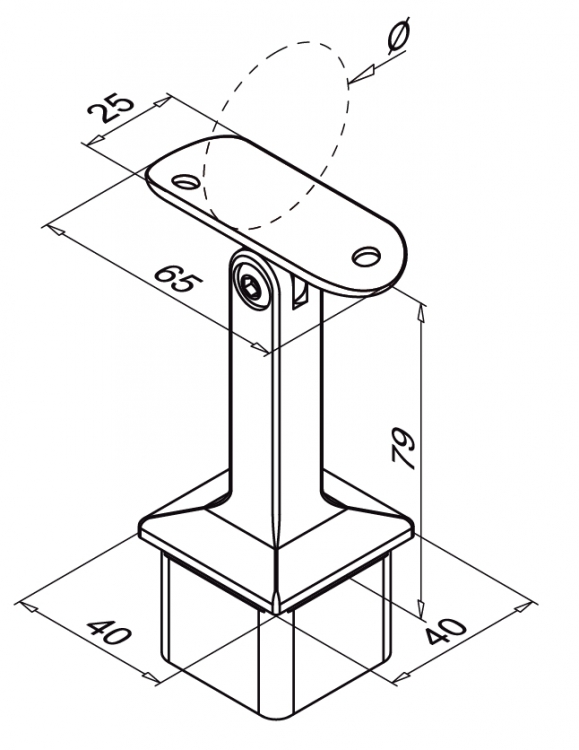

Length: 40 mm
Width: 40 mm
Visible part (H dim.): 79 mm
Fits handrail: Round tube Ø 42,4 , Round wood Ø 42,4 , Square 40 x 40 , Square 60 x 40 , U-tube Ø 42,4
Fits post/surface: Square/flat
Material: Acid-res. st. steel (A4/AISI 316)
Surface finish: Satin/brushed
Fastening: Glue


Qty:
abcd Article no. Handrail Finish Price Stock status Quantity
Top fitting with joint, square post (flat, satin) S460200 Plane Satin €40.11
Purchase View

Click on a product to show details. All measurements in millimetres unless otherwise stated.
