Complete railings

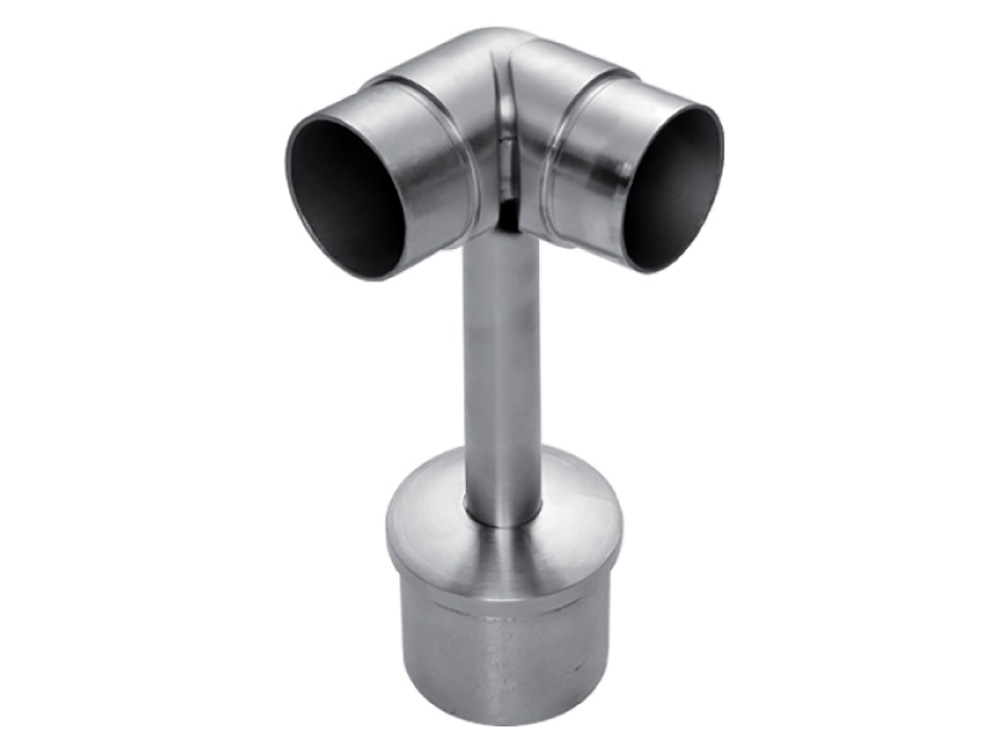

Top fitting with adjustable bracket and tube connection, 110-180°
Top fittings with connections for tubes and variable joints, from 110° to 180° (straight). For installation of tubular hand rails on round corner posts.
Made of stainless steel, AISI 316 / A4. Use adhesive T70 for the installation of tube connections.
| Diameter: | 14 mm , 42.4 mm |
| H dimension: | 79 mm |
| Angle: | 110-180 ° |
| Fits handrail: | Round tube Ø 42,4 |
| Fits post/surface: | Round Ø 42,4 |
| Material: | Acid-res. st. steel (A4/AISI 316) |
| Surface finish: | Satin/brushed |
| Fastening: | Glue |
| abcd | Article no. | Finish | Handrail | Price | Stock status | Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Top fitting with adjustable bracket and tube connection, 110-180° (satin) | J071842 | Satin | Round 42.4 | €68 |
Click on a product to show details. All measurements in millimetres unless otherwise stated.
