Complete railings

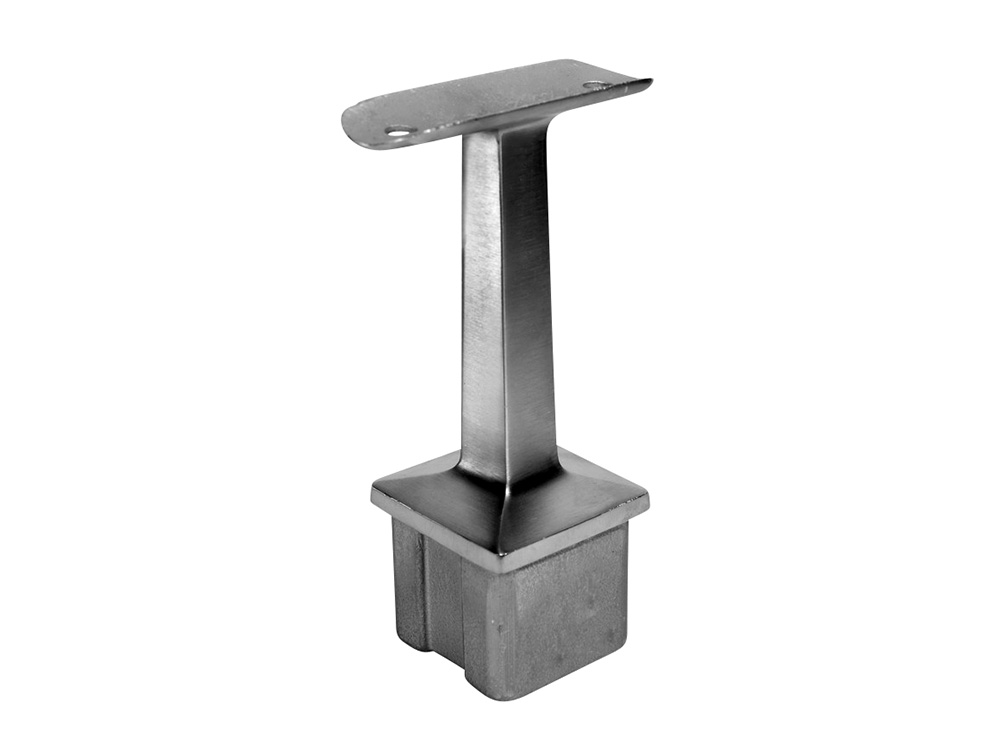

Top fitting, square post
Fixed top fitting for installation of tubular or wooden hand rail on 40 x 40 mm post. Made of stainless steel, AISI 316 / A4.
Attach to the post using adhesive T70, can be found under See more products further down the page. Use 2 screws 9460-4-5X16 for tubular hand rails, or 2 screws 9477-4-4.8X25 for wood.

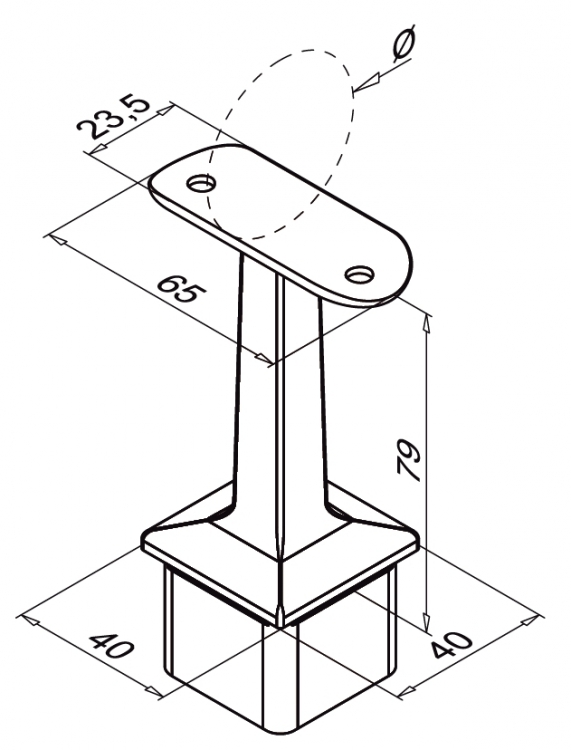

| Length: | 40 mm , 65 mm |
| Width: | 23.5 mm , 40 mm |
| Visible part (H dim.): | 79 mm |
| Fits handrail: | Round tube Ø 42,4 , Round wood Ø 42,4 , Square 40 x 40 , Square 60 x 40 , U-tube Ø 42,4 |
| Fits post/surface: | Square/flat |
| Material: | Acid-res. st. steel (A4/AISI 316) |
| Surface finish: | Satin/brushed |
| Fastening: | Glue , Screw |
| abcd | Article no. | Handrail | Finish | Price | Stock status | Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Top fitting, square post (flat, satin) | S460100 | Plane | Satin | €17.73 | ||||||||
| Top fitting, square post (round, satin) | S460142 | Round 42.4 | Satin | €17.73 |
Click on a product to show details. All measurements in millimetres unless otherwise stated.
