Complete railings

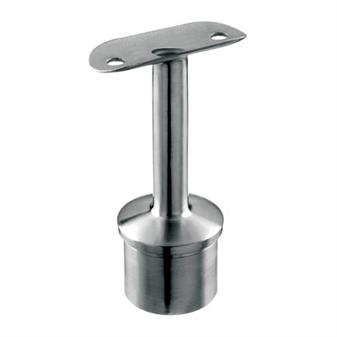

Top fitting for hand rail with LED strip
Top fitting adapted for outdoor use and compatible with LED strip for U-tubes.
Use adhesive T70 to install on the railing post. Use 2 screws 9460-4-5x16 for tubular hand rail, or 2 screws 9477-4-4.8x25 for wood hand rails or adapter for U-tube. All can be found further down the page.
Please note that an adapter for U-tubes is necessary to mount a U-tube on the top fitting.
| Diameter: | 14 mm , 42.4 mm |
| Visible part (H dim.): | 79 mm |
| Fits handrail: | Round tube Ø 42,4 |
| Material: | Acid-res. st. steel (A4/AISI 316) |
| Surface finish: | Satin/brushed |
| Fastening: | Glue , Screw |
| abcd | Article no. | Finish | Price | Stock status | Quantity | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Top fitting for hand rail with LED strip (satin) | L100.100.200 | Satin | €39.89 |
Click on a product to show details. All measurements in millimetres unless otherwise stated.
